Chassis

ZZ1257N3847C

Engine

Make: SINOTRUK

Diesel:4-stroke direct injection diesel engine

Engine model:WD615,EuroⅡemission standard

6-cylinder in-line with water cooling, turbo-charging and intercooling

Maximum output:371 hp(276KW)at 2600 rpm

Maximum torque:1100 Nm at 1100-1600 rpm

Number of cylinder :6

Displacement:9.726 L

Bore:126mm

Stroke:130mm

Compression ratio:17.5:1

Specific fuel consumption:198g/KWh

Engine oil filling quantity:19L

Cooling system filling quantity(long-term filling):40 L

Thermostat with 71℃ opening begin

Single cylinder air compressor

Rigid fan

Clutch

430C Pull type diaphragm spring clutch. Friction disk diameter: 430mm

Transmission

HW19710,10 forward & 2 reverse.

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

HF9

Rear Axle

HC16   Central single reduction, full-floating axle shaft, steel plate press-welding axle housing.

Chassis

Frame :U-profile parallel ladder frame with section of 300×80×8 mm, all cold riveted cross members

Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspention:15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers

Aluminum fuel tank:300 l capacity with locking fuel cap, fitted to the off side of the chassis

Steering

ZF8098,hydraulic steering with power assistance.

Brakes

Service brake: dual circuit compressed air brake

Parking brake (emergency brake):spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Option: ABS

Wheels & Tyres

Rims:8.5-20,10 hole-steel

Tyres:12.00-20

Electrics

Operating voltage:24 V, negative grounded

Starter:24 V,7.5Kw

Alternator:28 V,1500 W

Batteries:2×12 V,165Ah

Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light

Dimensions in mm

Wheel base: 3800+1400

Front wheel track: 2022/2041

Rear wheel track: 1830/1830

Front overhang: 1500

Rear overhang: 2690

Approach angle(°): 19

Departure angle(°): 15

Overall dimension(L x W x H mm): 9695X2496X3490

Weight in kg

Dead weight: 10200

Gross vehicle weight: 25000

Performance

Maximum driving speed(km/h):90

Maximum gradeability(%):39

Minimum ground clearance(mm):298

Minimum turning circle(m):18.6

Fuel consumption(1/100km):26

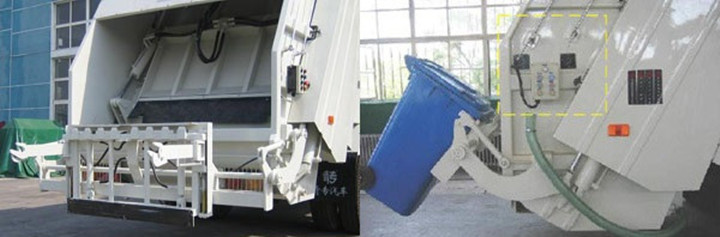

Body

Volume of body(m3): 20

Volume of filler(m3):2.0

Time of one filling cycle(s):≤25

Lifting time of filler (s):8-10

Time of discharge (s):≤40

Pressure of fluid system (Mpa):20
